Buy nuclear-safe bunkers
Nuclear shelters must offer people comprehensive protection. Based on the highest requirements, our team of engineers calculated, developed and patented a bunker capable of protecting against nuclear radiation.
Our reinforced concrete bunker has a modular design and can be assembled at your premises within a few days.
Nuclear-proof bunkers
Bunkers are special underground shelters that serve to protect people, goods or information from various dangers. Bunkers fulfill different functions depending on their purpose. In a warlike context, they serve as protection against enemy attacks, for example in the form of air or nuclear attacks. In a civilian context, bunkers protect against natural disasters such as earthquakes, storms or floods. But they also protect against unforeseen events such as power outages, cyber attacks or as a panic room in the event of criminal break-ins. In addition, bunkers are also used to store important goods such as food, water or medical supplies.
On the development of the prefabricated bunker
The German Shelter Center is one of the leading shelter builders in Germany. Many of the customers who contacted us and were interested in building private shelters already had an existing building on their property and converting a basement room into a shelter was difficult. The subsequent construction of a shelter/bunker on the property using conventional construction methods was also not the easiest option, as a large number of trades were required.
For this reason, we decided to develop the safest modular prefabricated bunker for our customers.
The modular prefabricated bunker had to meet the highest requirements and withstand extreme loads. It also had to offer the occupants sufficient protection from radioactive radiation. Steel walls and ceilings were not an option for these requirements, which meant that the shelter shell had to be made of solid reinforced concrete.
Since there are no longer any legal requirements and framework conditions for shelter construction in Germany, we based our development heavily on the former German requirements as well as the current Swiss standards for shelter construction.
In collaboration with the German precast concrete plant Hieber, we have developed a modular prefabricated bunker that meets the highest requirements. The modular prefabricated bunker is designed for a pressure load of 200 kN/m². This is about 40 times the load of a conventional basement ceiling. Thanks to our patented system, a private bunker can be built easily and in a very short time, even if there is already construction on the property.
The bunker is modular and available in three different sizes:
-
Subcompact
-
Compact
-
Standard
-
Large
Access to the bunker can be via a staircase module or via direct access from the basement of an existing building. This means that the prefabricated bunkers can be installed inconspicuously in various locations.
Showroom and exhibition bunker of the “Subkompakt” type
The Subkompakt prefabricated bunker is the smallest unit that can be installed above ground and without a building permit in all federal states.
Arrange a personal consultation and visit our exhibition bunker in Augsburg, Bavaria.
Construction of the modular prefabricated bunker
Use and application
The prefabricated bunker was designed so that it can be used effectively both in times of danger and in times of peace. Most bunkers and shelters are used in times of peace as cellars for supplies or as hobby rooms. The bunker buildings can also be furnished and equipped as an exclusive wine cellar.
In tense situations such as pre-attack phases, the bunkers are prepared for rapid occupancy and stocked with supplies and food. Days or weeks can pass before the danger occurs. During this time, people stay in and outside the bunker for a while. It can be assumed that the population will be informed about the danger via the media (Internet, TV, radio, etc.). In times of danger and attack phases, people primarily stay in the bunker. The length of time required depends on the type of threat and can range from hours to days. You can find more information on this on our subpage on the scope of protection of bunkers and shelters.
To ensure that people remain safe in times of danger, our prefabricated bunker is equipped with comprehensive safety technology:
Structure and equipment
Each prefabricated bunker has an entrance and an emergency exit. The entrances are equipped with solid armored doors and armored covers made of 20 cm reinforced concrete to protect people from pressure waves, radioactive radiation, gases and from unauthorized entry. If access via the armored door is blocked, occupants can leave the bunker via the emergency exit.
The air supply is provided by a special ventilation system with ABC gas filter, which offers protection against nuclear, biological and chemical warfare agents. The ventilation system can be operated electrically or manually in the event of a power failure. Air inlets and outlets are equipped with tested explosion protection valves and protect occupants from explosions and pressure waves.

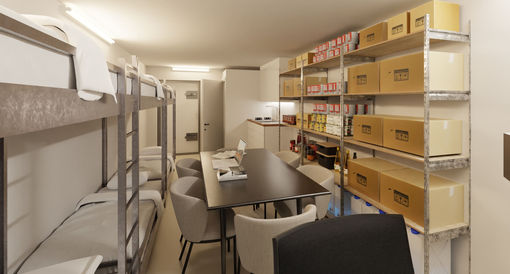

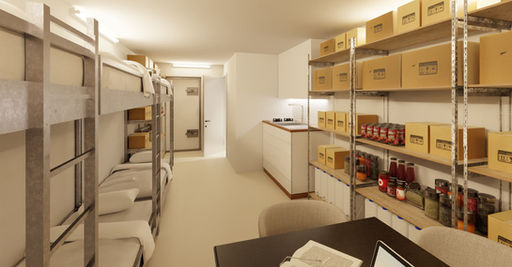

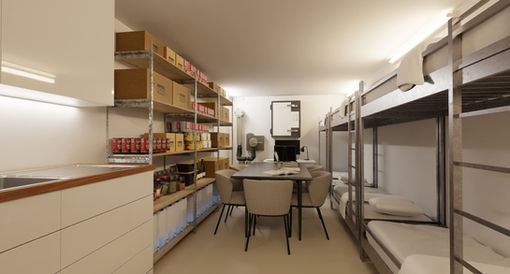

The bunkers are equipped as standard with shelter beds, storage shelves, dry toilets and power and water supply connections. In the event of a power failure, the bunker is supplied with power via the integrated emergency power supply using maintenance-free battery storage and photovoltaic modules.
Variants of the modular prefabricated bunker
Modular bunker "Subcompact"
The “Subcompact” prefabricated bunker is the smallest bunker and offers protection for a maximum of six people. It was developed for short waves of attacks (e.g. drone attacks, artillery or bomb attacks), so that the duration of stay is designed for a few hours.
This prefabricated bunker can be installed above ground, partially underground or completely underground.
-
6 shelter places
-
5.4 m² usable area
-
NBC ventilation system with explosion protection valves and gas filter
-
Armored door
-
Dry lavatory
Advantage: This prefabricated bunker can be installed without a permit in all federal states due to its above-ground arrangement.
Modular bunker "Compact"
The “Compact” prefabricated bunker is designed for underground installation and offers full protection for six people. Due to its underground installation and solid construction, it also offers sufficient protection against radioactive radiation.
-
6 shelter places
-
12.0 m² usable area
-
ABC ventilation system with gas filter
-
Armored door
-
Armored cover with emergency exit
-
Dry lavatory
-
Emergency power supply
The underground installation of bunkers is not subject to approval in Germany and requires a building permit.
Modular bunker Standard
The prefabricated bunker “Standard” is medium-sized and offers full protection for a maximum of nine people.
9 shelter spaces
20.4 m² usable space
ABC ventilation system with gas filter
Armoured door
Armoured cover with emergency exit
- Dry toilet
- Emergency power supply
Modular bunker Large
The “Large” prefabricated bunker is the largest size and offers full protection for a maximum of twelve people.
12 shelter spaces
28.8 m² usable space
ABC ventilation system with gas filter
Armoured door
Armoured cover with emergency exit

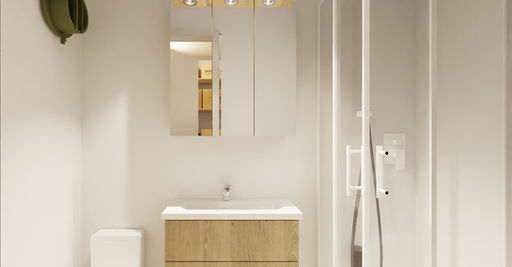

- Bathroom with sink, toilet and shower as well as dry toilet
- Emergency power supply
Equipment of the modular prefabricated bunker
Installation variants for the bunker Subkompakt
The “Subkompakt” bunker type can be installed above ground, partially or fully underground. Different accesses are possible depending on the installation situation.
Access variants:
-
Ground-level access
-
Stair descent
-
Descent shaft with ladder
The entrances can be concealed so that the bunker is not visible. The Subkompakt bunker can be used very well for dual purposes.
Examples of this:
-
Wine cellar
-
Storage room for food
-
Garage for bicycles or garden tools

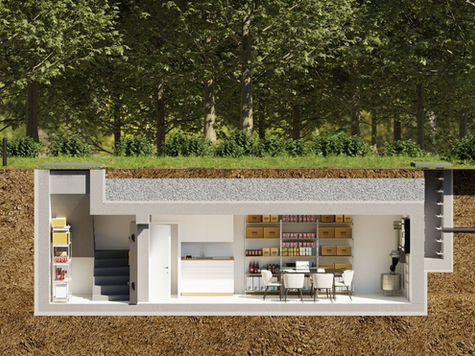

Modular bunker with staircase module

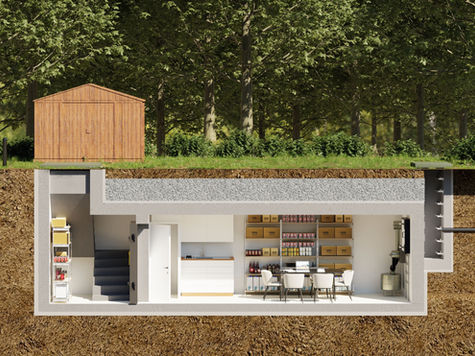

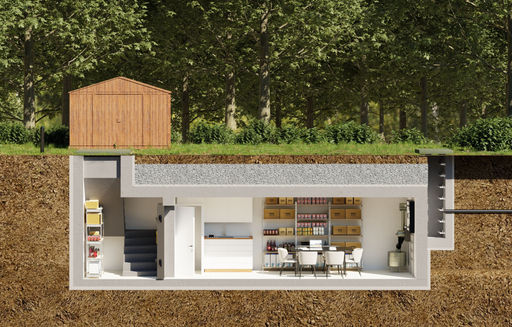

In this variant, access to the bunker is via a staircase module, which means that the bunker can be installed anywhere. The access module is equipped with a solid reinforced concrete staircase and offers plenty of space, which means that larger objects can also be brought into the bunker later. The entrance can either be closed with special covers or hidden inconspicuously under a garage / garden shed.
Access module:
Prefabricated staircase made of reinforced concrete
Descent size 2.00 x 1.00 m
Stair width 1.00 m
Variants descent cover:
Burglar-resistant
Ground level, walkable, driveable

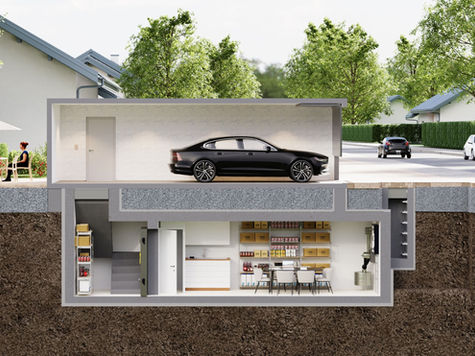

Advantage: The prefabricated bunker is designed so solidly that it can also be used as a foundation for garages above.
Modular bunker with connection module
With this variant, the modular bunker can be connected to an existing building via a connection module. This means that people can go directly from the existing building into the bunker. Depending on local conditions, the connection module can be individually manufactured and delivered.
Connection module:
Access from the house possible
Stair width 1.00 m
Direct media supply via buildings
The cellar extension can be set up and used as a storage room or wine cellar in peacetime.
Equipment of the modular prefabricated bunker
Scope of equipment
The prefabricated bunkers are delivered to the construction site and assembled within a few days. After construction, the bunkers are equipped with special components and put into operation. The extensive basic equipment offers everything that is required for a stay of several days. The following table provides an overview of the diverse range of equipment:
Special equipment
Depending on the customer's wishes, the bunker can be equipped and furnished with a variety of extensions. For example, the bunker can be equipped with KNX installation to implement intelligent controls. We are happy to take your individual wishes into account and implement them as part of the planning.
Advantages of the prefabricated bunker
Buying a prefabricated bunker offers many advantages and is the ideal solution for people who cannot build a shelter or bunker in the basement of their home. The bunker modules can be discreetly installed on site within a few days.
Our tested prefabricated bunker made of reinforced concrete is significantly more stable than conventional welded steel constructions and, with a weight of 80 - 120 tons, is the safest prefabricated bunker on the market.
Advantages at a glance
_JPG.jpg)
_JPG.jpg)
The way to your own bunker
Steps
Below you will find the procedure for purchasing a prefabricated bunker:
-
Contact us
Send us an inquiry using the contact form and we will arrange a free consultation
-
Consultation
We will arrange a joint consultation and clarify your requirements and general conditions - online or in our showroom. We can then prepare a suitable offer for you.
-
Building application
A building permit is required for structures that are installed underground. No permit is required for the Subkompakt above-ground prefabricated bunker.
-
Production
A customer-specific production drawing is created and the precast concrete parts are concreted in the factory.
-
Preparation
Excavation is carried out at the construction site and a clean layer is prepared.
-
Delivery & assembly
The prefabricated modules are delivered to the construction project and assembled within a few days.
-
Commissioning
The ventilation system and the shelter facilities are installed and the electrical and water installations are carried out. The bunker is then backfilled with excavated material and put into operation.
-
Come by for a non-binding consultation and visit our showroom. We look forward to talking to you!
